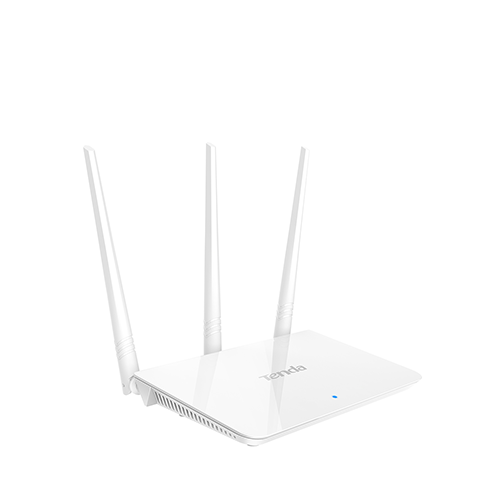

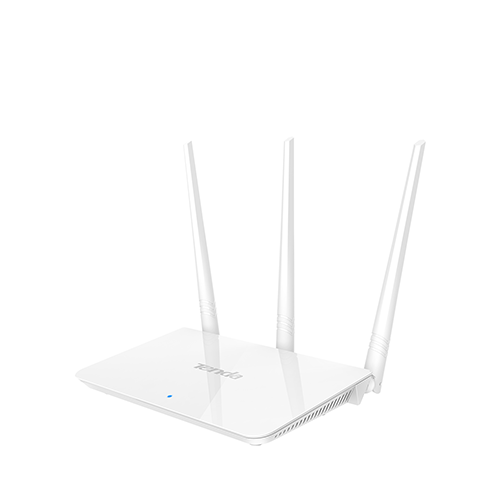

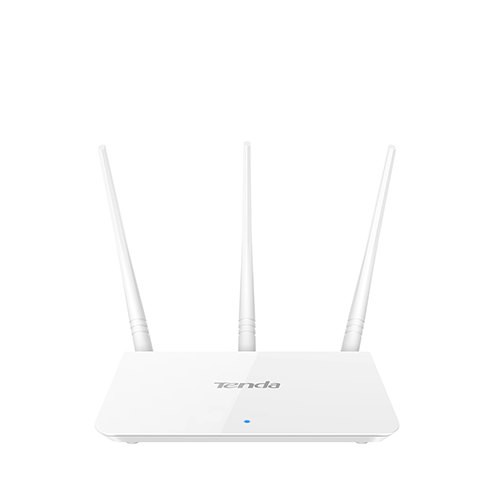

Tenda F3 300Mbps Wireless Router / 3 Antenna Router

F3 is specially designed for your smart home networking life .Chip to router what is heart to human.Its superior Advanced Chip ensures stable and fast wireless performance, making it ideal for streaming music, uploading photos, video chatting, HD video streaming and other bandwidth-intensive tasks.

Standard&Protocol

IEEE802.3, IEEE802.3u,IEEE802.3ab

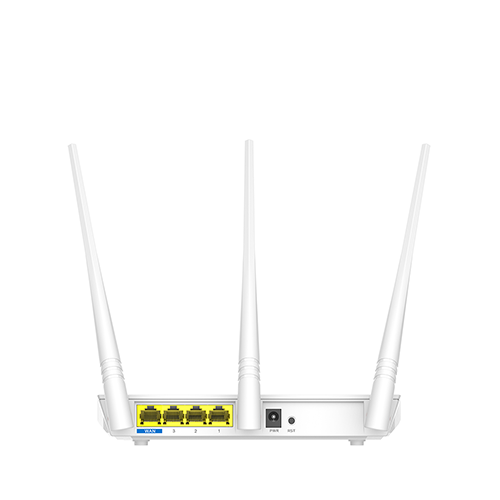

Interfaces

1*10/100Mbps WAN port
3*10/100Mbps LAN ports

Antenna

3*5dBi external antennas

Button

1*RST

Power

Input：AC 100-240V~50/60Hz 0.6A
Output：DC 9V0.6A

Dimension

185.6*118.4*31.2mm

LED Indicator

SYS*1

Wireless

Wireless Standard

IEEE 802.11b/g/n 2.4GHz

Data Rate

2.4GHz: Up to 300Mbps

Frequency

2.4GHz

Transmission Power

CE:<20dBm

Basic Features

WiFi On/Off

Wireless Security

WPA/WPA2, WPA-PSK/WPA2-PSK

Software

Internet Connection Type

PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)

Operating Mode

Wireless Router Mode
Universal Repeater Mode
WISP Mode
AP Mode

DHCP Server

DHCP Server
DHCP Client List
DHCP Reservation

Virtual Server

Port Forwarding
DMZ Host
UPnP

Security

Client Filter
Parental Control(support black list and white list)
Remote Web Management

Firewall

Forbid UDP flood attack
Forbid TCP flood attack
Forbid ICMP attack
Forbid WAN PING from internet

DDNS

no-ip,DynDNS,Oray

VPN

IPsec pass through
PPTP pass through
L2TP pass through

Special Features

Smart WiFi Schedule

Others

Bandwidth Control
MAC Clone
System Log
Backup & Restore configurations
Firmware upgradeable via browser
IPv6 Features Supported（just in Bangladesh）

Others

Temperature

Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃.

Humidity

Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.

Default Settings

Default Access: 192.168.0.1

Certification

CE/FCC/RoHS

EIRP Power (Max)

2.400-2.4835GHz:19.37dBm (EIRP)

Package Contents

Wireles Router*1
Power Adapter *1
Install Guide*1
Ethernet Cable*1
