Interface

2*10/100Mbps LAN Ports

1 *10/100Mbps WAN Port

Power Supply

9V DC/0.5A

Antenna

1 *5dBi fixed antenna

Button

1 *RST Button

1 *WPS Button

LED Indicators

1 *CPU, 1 *Wireless, 1 *WAN, 2 *LAN

Dimensions(L x W x H)

3.6 x 3.1 x 1.0 in. ( 91 x 80 x 25 mm)

Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

RF Frequency

2.4~2.4835GHz

Data Rate

802. 11n: Up to 150Mbps

802.11g: Up to 54Mbps (dynamic)

802.11b: Up to 11Mbps (dynamic)

EIRP

< 20dBm

Wireless Security

64/128-bit WEP, WPA/WPA2 and WPA-Mixed

Reception Sensitivity

135M: -65 dBm@10% PER

54M: -68 dBm@10% PER

11M: -85 dBm@8% PER

6M: -88 dBm@10% PER

1M: -90 dBm@8% PER

Operation Mode

Wireless ISP Client Router

Wireless Client

Repeater(Range Extender)

Router

Bridge with AP

Client

Network

VLAN, IPv6

WAN Type

DHCP/Static IP/PPPoE(dual access)/PPTP(dual access) /L2TP(dual access)

Wireless Functions

Multiple SSID, MAC Authentication, Universal Repeater, WDS, WPS

Schedule

Reboot Schedule, Wireless Schedule

Firewall

MAC Filtering, IP Filtering, Port Filtering, URL Filtering, Port Forwarding, DMZ

Management

Firmware Upgrade, QoS, TR-069 config, DDNS, Access Control

Package Contents

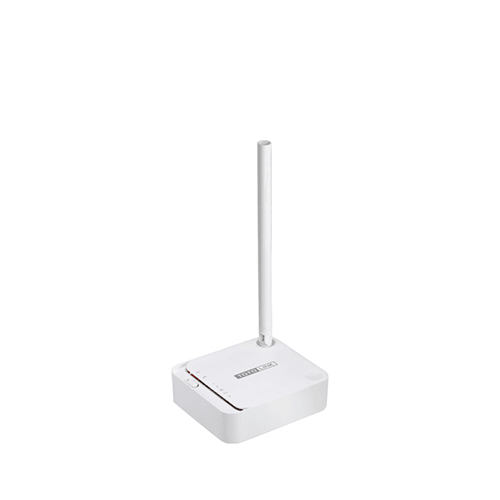

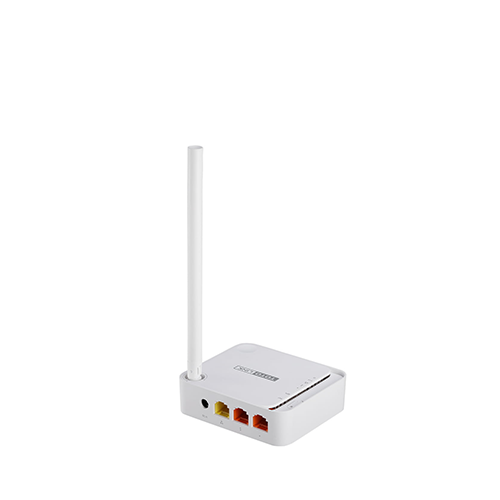

N100RE Wireless Router *1

Power Adapter *1

Ethernet Cable *1

Quick Installation Guide *1

Environment

Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)

Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
